CCHE-MESH

  • An efficient 2D mesh generator for both structured  and unstructured meshes . It supports mesh generation  starting from topography database file, ASCII coded DEM file, ESRI shape files, and background image file

Key Capabilities

  • Digitization of block boundary
  • Algebraic mesh generation
  • 2D Quality structured mesh generation
  • 2D Rectangle Mesh Generation
  • 2D Automatic Structured Mesh Generation
  • 2D Quality triangle mesh generation
  • 2D Hybrid (Quadrilateral + Triangle) mesh generation
  • Fast Bed Interpolation
  • Mesh Editing
  • Automatic uniform rectangle meshes for complex geometries defined by polylines

For Structured Mesh Generation, it integrated

  • Multi-block scheme for complex geometries
  • Numerical methods for orthogonal meshes with smoothness controls
  • Adaptive mesh generations with smoothness controls

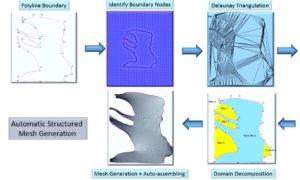

  • Automatic structured mesh generation for complex geometries defined by polylines

For Unstructured Mesh Generation, it integrated

  • Automatic triangle mesh generations for complex geometries defined by polylines
  • Automatic hybrid mesh (triangle + quadrilateral) generations for complex geometries defined by polylines
